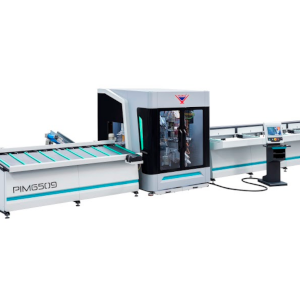

PIM 6509 – 8 Axis Machining Centre

Specifications • 8 – Axis Servo controlled CNC • Fully automated feeding, carrying, positioning, cutting and transferring units • Drill, Mill and slot on all 4 sides • Pneumatic gripper for accurate positioning of the profile • Horizontal and vertical clamping of the profile • Automatic conveyor unit with the loading capacity of 7 profiles • Ø 550 mm dia Servo controlled saw blade • 30⁰ to 150⁰ with the accuracy of -/ 0.1⁰ • Windows based PC and 15.6’’ LCD touch screen monitor • Remote desktop connection and providing technical support • User friendly interface software that is compatible with most CAD programs • Ability to perform milling and cutting operations at the same time • Automatic frame and sash profile recognition system • Automatic profile width and height dimension control system • Automatic lubrication system • Low pressure control for saw blade safety operations • LED interior lighting • Barcode Printer
