SPEAKER CABLE: 4-CORE Speaker Cable for Internal Walls (LSZH LSOH)

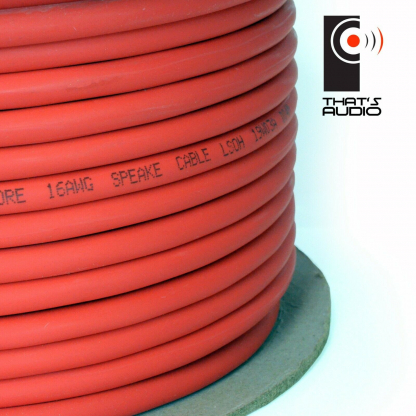

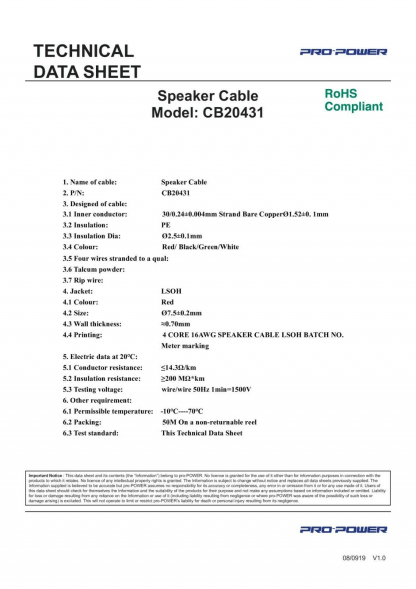

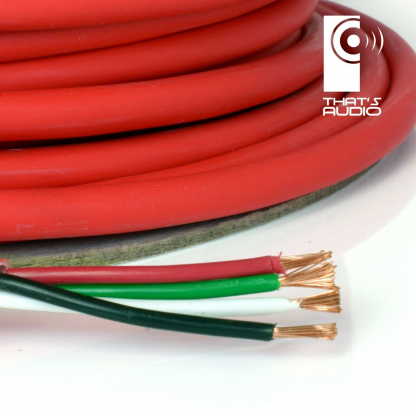

Description Speaker cables are a vital part of an audio system, carrying the musical signal from the amplifier to the speakers. This audio cable is produced using a LSOH (Low Smoke Zero Halogen) jacket for use in internal cavity walls to meet building regs. It is primarily used for domestic sound systems. It is not screened, so should not be run in close proximity to mains cabling. Conductor Material: Copper – stranded plain annealed copper conductors Cable cut by the metre – please specify the number of metres required. REELS are available on request (dependent on stock availability) ORANGE / RED PE Insulation Conductor Resistance: ≥14.3 Ohm/km Insulation Resistance: ≥200M Ohm*km 99.9% (OFC) oxygen-free, multi strand copper conductors reduce signal distortion for audio clarity 4-CORE: Conductor Area CSA: 1.5mm GAUGE: 4 Core 16 AWG Cable Shielding: Unscreened CABLE DIAMETER: 7.5mm Jacket Material: Low Smoke Zero Halogen LSOH (LSZH) No. of Max Strands x Strand Size: 30 x 0.24mm
